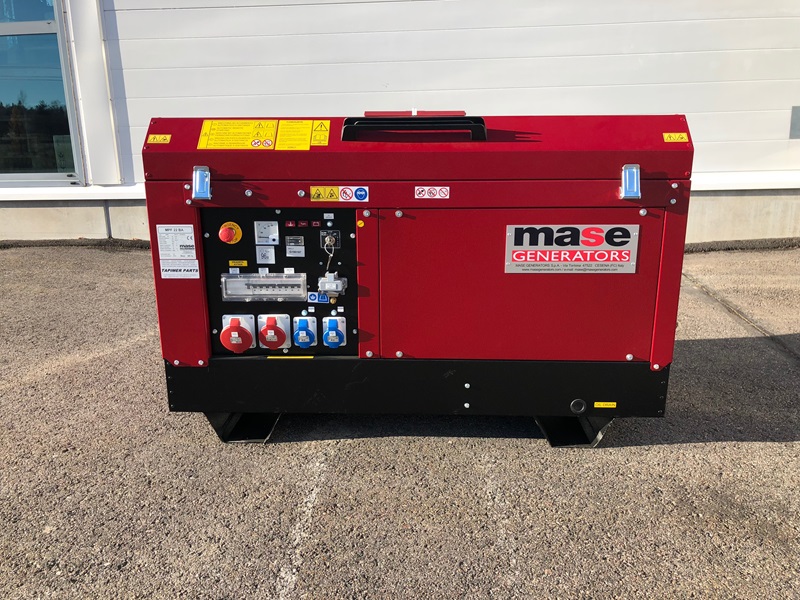

YANMAR stage 5 MASE MPF22 diesel generating set
Maximum power output: 22 kVA
Prime power output: 20 kVA
Dimensions (L × W × H): 1,430 × 690 × 930 mm
Weight: 510 kg
Noise level: 71 dB(A) at 7 m
Standard equipment:
Engine: Yanmar 4-cylinder diesel engine, 1,500 rpm, 2.2 L displacement, EU Stage V compliant
Alternator: 230/400 V with Automatic Voltage Regulation (AVR)
Starting battery charging system 12 V
Engine electrical system
Control and monitoring panel with the following functions: Start and stop controls, automatic shutdown for low engine oil pressure or high engine coolant temperature, warning indicators for high engine temperature and low oil pressure, fuel level gauge, hour meter, thermal circuit breaker
Fuel tank: 40 L integrated into the base frame
Starting battery
Exhaust silencer
Soundproof enclosure
Remote start wiring and connector
Engine and alternator mounted on anti-vibration rubber mounts
Installation manual and electrical wiring diagrams included
An Automatic Transfer Switch (ATS) control panel is available as an optional accessory for these generators. The panel is supplied complete with contactors and is priced at €1,847.60 per unit (including 25,5% VAT).
