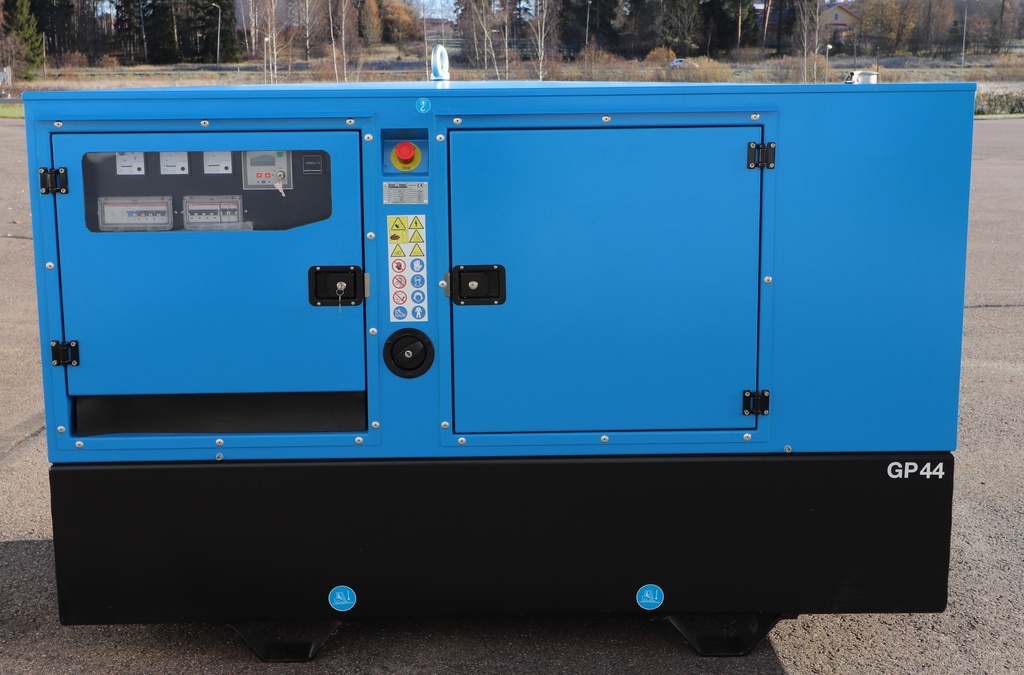

YANMAR GP 44 diesel generator set Stage 5
40 kVA diesel generator set
Technical specifications
Prime power: 40 kVA
Standby power: 44 kVA
Equipment and features
Yanmar 4TNV98CT Stage V diesel engine with intake air glow plug as standard and common rail fuel injection system
Mecc Alte Alternator, 230/400 V, 1500 rpm, brushless alternator with Automatic Voltage Regulator (AVR)
Digital control and monitoring
Advanced ComAp digital control panel with manual/auto operating modes
Remote monitoring capability
Comprehensive monitoring and logging functions, including:
Load balance between phases
Event log (minimum 200 most recent events)
Number of engine starts
Number of engine stops
Emergency stop counter
Service interval counter
Engine running hours (hour meter)
Alarm history with occurrence timestamps
Generated electrical energy (kWh and kVArh)
Operating history
Protection and measurements
The ComAp controller provides:
Engine start and stop functions
Automatic shutdown in the event of:
Low oil pressure
High engine temperature
Low battery voltage
Protective shutdowns for:
Failed start
Engine overspeed
Low engine speed
The display provides real-time information including:
Engine speed (rpm)
Oil pressure
Engine running hours
Generator output voltages
Frequency
Phase load currents
Remaining fuel level
Standard Equipment
Power output sockets
250-litre double-wall fuel tank with integrated spill containment (compliant with groundwater protection requirements)
12 V starting battery
Exhaust silencer
Engine and alternator mounted on anti-vibration rubber mounts
Sound-attenuated enclosure
Heavy-duty steel base frame
Cellular radiator with engine-driven fan directing airflow away from the engine
Exhaust silencer and flexible exhaust connection pre-installed inside the enclosure
Lockable service doors on both sides
Battery isolator switch
Engine block heater with thermostat
Automatic battery charger with dedicated power plug to keep the starting battery fully charged
Three-way fuel valves fitted with quick-connect couplings
Engine-mounted oil drain pump installed directly to the oil sump for fast and convenient oil changes
Applications
This generator set is suitable for a wide range of applications, including construction sites, agricultural operations, industrial production, and other standby power requirements. It is also an ideal emergency power generator for critical systems, ensuring a reliable power supply during power outages.
