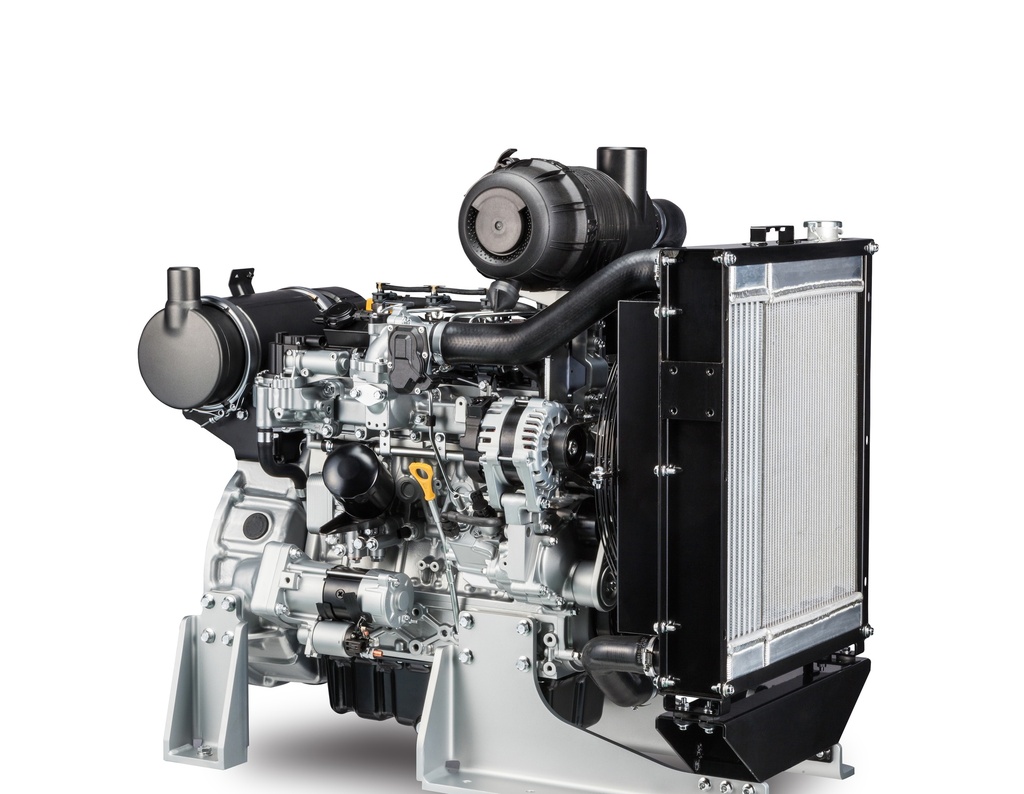

Doosan Hyundai D24-55 kW diesel engine Stage 5
DOOSAN D24 diesel engine – Stage V configuration
Engine specifications
Maximum power: 55.4 kW (74.3 HP)
Rated speed: 2,600 rpm
Maximum torque: 320 Nm @ 1,600 rpm
Displacement: 2.392 L
Engine weight: 266 kg
Power pack weight: 289 kg
Standard equipment
Bosch Common Rail fuel injection system
12 V / 140 A alternator
12 V starter motor
12 V engine electrical system
Engine wiring harness
Engine sensors installed (oil pressure, coolant temperature, and ATS system sensors)
SAE #4 flywheel housing and SAE #10 flywheel
Front timing gear drive with hydraulic pump mounting provision (e.g. DIN 9T / 130 Nm)
Stage V aftertreatment system (DOC + DPF) installed – no AdBlue (DEF/urea) system required
Optional equipment
Air cleaner installed
Electric fuel transfer pump
Fuel pre-filter
Radiator with suction fan (or blowing fan, depending on configuration)
Mounting brackets (engine mounts and radiator support brackets)
Aftertreatment wiring harness
Availability
Available directly from stock.
This version is suitable for quotations, technical datasheets, and sales brochures in international markets.
