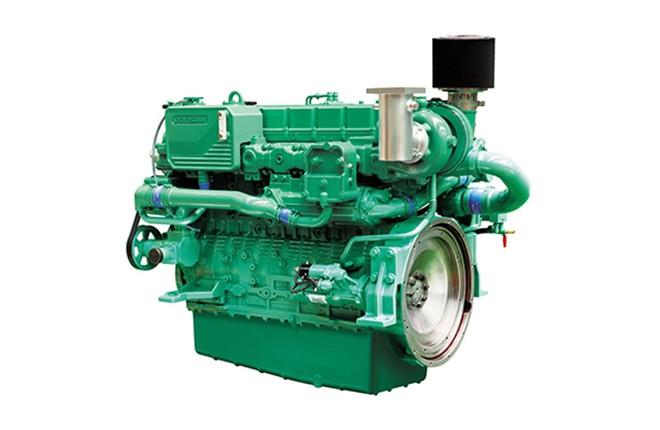

MARINE DIESEL ENGINE DOOSAN 4L126TI



DOOSAN 4L126TI 450 hp / 2000 rpm
Heavy Duty

DOOSAN 4L126TI 495 hp / 2100 rpm
Medium Duty

DOOSAN 4L126TI 545 hp / 2200 rpm

Technical specifications

Base engineDoosan
Number of cylinders6
Displacement (L) 11.051
Rated power PS / hp ( kW )545 (401)
Rated speed (rpm / min)2200
Rated torque (Nm / rpm / min)
Operation Intercooled, turbocharged
Compression ratio 16.7:1
Injection pumpMechanical inline fuel injection pump
Cooling Freshwater cooling with heat exchanger
Electrical system / charging alternatorStandard 24V / 50A / (Various options available)
Marine gearboxVarious options available
Dimensions without marine gearbox ( L x W x H ) 1131 x 904 x 1153
Weight (kg)1136
Brochure Instrument panel

Hyundai marine diesel engines


TypePower hp / rpmCyl. (displacement l / pc)Emissions
L136160 / 22008.1 / 6
L066TI180 / 22005.5 / 6IMO Tier2
L136T200-240 / 22008.1 / 6IMO Tier2
L136TI230 / 22008.1 / 6IMO Tier2
MD196T280 / 200011.1 / 6IMO Tier2
L086TI285-360 / 21008.1 / 6IMO Tier2
MD196TI320 / 200011.1 / 6IMO Tier2
L126TI360-400 / 200011.1 / 6IMO Tier2
4L126TI450-545 / 200011.1 / 6IMO Tier2
V158TI480-680 / 180014.6 / 8IMO Tier2
4V158TI530-800 / 180014.6 / 8IMO Tier2
V180TI600-820 / 180018.3 / 10IMO Tier2
V222TI720-1000 / 180022.2 / 12IMO Tier2
4V222TI800-1200 / 180022.2 / 12IMO Tier2
4L066C130-300 / 21005.9 / 6IMO Tier3
4L086C280-380 / 20007.6 / 6IMO Tier3
4L126C400-550 / 210011.1 / 6IMO Tier3
4V222CA(C)810 / 180022.9 / V12IMO Tier 3
4V222CA(H)1000 / 180022.9 / V12IMO Tier 3
4V222CA(L)1235 / 230022.9 / V12IMO Tier 3

Hyundai brochure

​
