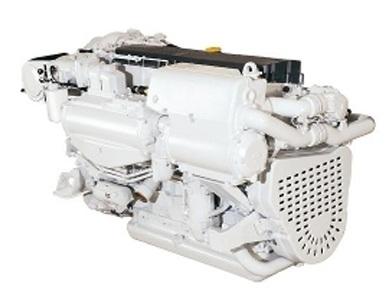

MARINE DIESEL ENGINE

CURSOR 13-825

STANDARD EQUIPMENT

Freshwater cooling, water-cooled exhaust manifold, instrument panel (hour and RPM meters, audible and visual alarms for the cooling system, charging system, oil pressure, and main switch), 7 m extension cable, outlets for cabin heating, oil change pump, operating and maintenance instructions

IVECO marine diesel engines can be supplied with various gearbox options, including TWIN DISC TECHNODRIVE and ZF-HURTH.

Most IVECO marine diesel engines are also available with a keel cooling system.

Technical specifications

Base engineFPT Iveco
Pleasure duty ( A1 )
825 hp ( 607 kW ) / 2400 rpm
Light duty ( B )
650 hp ( 478 kW ) / 2400 rpm
Medium duty ( C ) 600 hp ( 442 kW ) / 2400 rpm
Heavy duty ( D )

Number of cylinders 6 - L
Displacement ( L )
12.9
Rated power PS/ hp ( kW )
825 ( 607 )
Rated speed (rpm / min)2400
Rated torque (Nm/ rpm / min) 2740 / 1600
Operation Intercooled, turbocharged
Injection pump Bosch unit injector
Cooling Freshwater cooling with heat exchanger

Electrical system / charging alternator

 Standard 24 V / 90 A (various options available), also available with 12 V system

Marine gearbox

Various options available

Dimensions without marine gearbox ( L x W x H )

1465 x 1000 x 1058

Weight (kg) without gearbox

1395

Brochure Dimensional drawing

MARINE DIESEL ENGINES

Type

Power hp / rpm

Cyl. (displacement l / pc)

Emissions

SOFIM HPI 230

230 / 4000

2,99 / 4

IMO-MARPOL II,   2013/53/EC RCDI


SOFIM HPI 230 SD

230 / 4000

2,99 / 4

NEF 100

100 / 2800

4,5 / 4


NEF 150

150 / 2800

6,7 / 6


NEF 220

220 / 2800

6,7 / 6


NEF 250

250 / 2800

3,9 / 4

IMO-MARPOL II,   2013/53/EC RCDI, IWV Stage V


NEF 280

280 / 2000

6,7 / 6

IMO-MARPOL I

NEF 370

370 / 2800

5,9 / 6


NEF 400

400 / 3000

5,9 / 6

IMO-MARPOL II,   2013/53/EC RCDI

NEF 450

450 / 3000

6,7 / 6

IMO-MARPOL II,   2013/53/EC RCDI, IWV Stage V, EPA 3 Recreational,  EPA 3 Commercial,  CHINA GB II

NEF 550

550 / 3200

6,7 / 6

IMO-MARPOL II,   2013/53/EC RCDI, EPA 3 Recreational,  EPA 3 Commercial,  CHINA GB II

NEF 570

570 / 3000

6,7 / 6

IMO-MARPOL II,  2013/53/EC RCDII, EPA 3 Recreational, EPA 3 Commercial


CURSOR 9 -380

380 / 2000

8,7 / 6


CURSOR 9 -620

620 / 2530

8,7 / 6


CURSOR 9 -650

650 / 2530

8,7 / 6


CURSOR 13 -330

330 / 1800

12,9 / 6


CURSOR 13 -500

500 / 2000

12,9 / 6

IMO-MARPOL II


CURSOR 13 -825

825 / 2400

12,9 / 6


CURSOR 16 -600

600 / 1800

15,9 / 6

IMO-MARPOL II, EPA 3 Commercial, EU-RCD Stage II

CURSOR 16 -1000

1000 / 2300

15,9 / 6

IMO-MARPOL II, 2013/53/EC RCDII, EPA 3 Recreational, EPA 3 Commercial, CHINA GB II

Technical specifications are subject to change and should always be confirmed with the importer or the manufacturer.

Additional information is available on the Iveco FPT website.


​
