MARINE DIESEL ENGINE

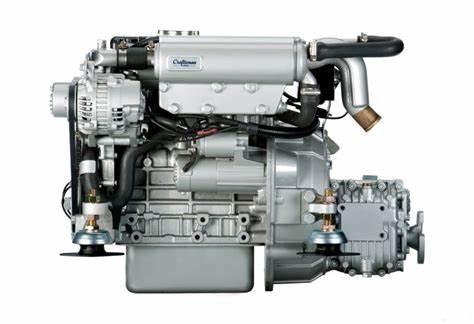

MITSUBISHI CRAFTSMAN 3.27
FEATURES
- Sea water–resistant cast exhaust manifold for long-lasting and efficient operation
- Corrosion-resistant heat exchanger
- Air intake silencer
- Based on Mitsubishi industrial engine – globally recognized and supported
- Complies with RCD II regulations
Technical specifications
| Base engine | Mitsubishi |
|---|---|
| Number of cylinders | 3 |
| Displacement (L) | 952 |
| Rated power PS/Hv (kW) | 27.2 (20) |
| Rated speed (rpm / min) | 3600 |
| Rated torque (Nm) | 53.1 |
| Operation | Naturally aspirated |
| Injection pump | Mechanical |
| Cooling | Freshwater cooling with heat exchanger |
|
Electrical system / alternator / instrument panel |
70 A / 12 V |
| Marine gearbox |
TD Technodrive TMC 40 (2.0:1 or 2.6:1) (standard),
Volvo 110 S or 120 S saildrive adapter,
TD Technodrive SP 60 saildrive |
| Dimensions without marine gearbox ( L x W x H ) |
724 x 516 x 515 |
| Weight (kg) | 113 |
Cratsman marine diesel engines
Type | Power hp / rpm | Weight (kg) | Emissions |
16 / 3600 | 90 |
RCD II
| |
27 / 3600 | 113 | RCD II | |
42 / 3000 | 175 | RCD II | |
52 / 3000 | 182 | RCD II | |
65 / 3000 | 235 | RCD II |
Technical specifications are subject to change and should always be confirmed with the importer or manufacturer.
More information available on the Craftsman Marine website. Click here Craftsman.
