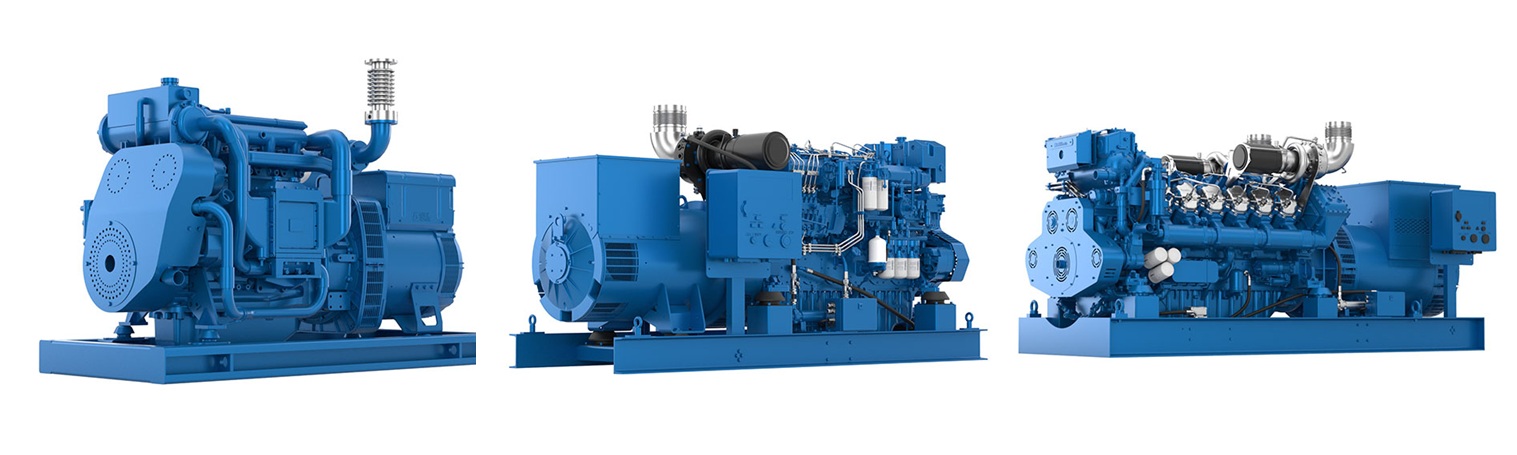

BAUDOUIN MARINE DIESEL GENERATORS
For over 100 years, Baudouin has been designing and manufacturing high-quality diesel engines for marine and generator applications, ranging from 18 to 1650 kWm. Its global network supports customers in over 100 countries with guidance, commissioning, maintenance, and genuine spare parts.
Baudouin offers a wide range of marine diesel generators designed for use in extreme marine environments. Their extensive selection of marine products provides you with a comprehensive solution for power generation and control systems.
| Type | Power (kVA) | Dimensions LxWxH (mm) / weight (kg) | Emissions |
105-133 |
1705 x 1015 x 995 / 907 |
| |
| 6W105S
| 150-185 |
1991 x 1044 x 1130 / 1231 |
IMO II
|
| 240-260 |
2408 x 1224 x 1275 / 1868 |
IMO II
| |
| 6W126S
|
330-350 |
260 kVA@50HZ |
IMO II
|
520-590 | 520 kVA @ 50 Hz 3003x1428x1534/3769 590 kVA @ 60 Hz 3003x1428x1534/3637 | IMO II | |
520-590 | 520 kVA @ 50 Hz 3003x1428x1992/3960
590 kVA @ 60 Hz 3003x1428x1992/3828 | IMO III | |
590-650 | 590 kVA @ 50 Hz 3157x1279x1629/4186
650 kVA @ 60 Hz 3076x2179x1629/4082 | IMO II | |
1050-1050 |
975 kVA 50 Hz | IMO II | |
1050-1195 | 1050 kVA @ 50 Hz 3991x1478x1662/6400
1192 kVA @ 60 Hz 3991x1478x1662/6400 | IMO III, EPA 4, Stage V | |
1050-1195 | 1050 kVA @ 50 Hz 3991x1478x1662/6400
1192 kVA @ 60 Hz 3991x1478x1662/6400 | IMO II, EPA 3 | |
1190-1320 | 1190 kVA @ 50 Hz 3670x1820x1855/7300
1320 kVA @ 60 Hz 3670x1820x1855/7300 | IMO II |
Technical specifications are subject to change and should always be confirmed with the importer or the manufacturer.
